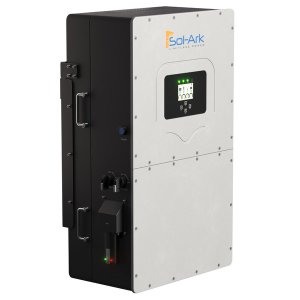

Sol-Ark 60K-3P-480V Commercial Hybrid Inverter, 60K-3P-480V

The Sol-Ark 60K-3P-480V is a high-performance commercial hybrid inverter engineered for large-scale commercial and industrial applications. This powerful inverter enables businesses to optimize solar energy usage, reduce peak demand charges, and participate in grid services programs, creating additional revenue streams. With a standard 10-year warranty, it provides long-term reliability for demanding energy needs.

Key Features:

• Engineered for Large Commercial and Industrial Operations: The native 277/480V 3-phase output simplifies installation, making it ideal for larger commercial and industrial environments.

• AC and DC Coupling Compatibility: It supports both AC and DC coupling, ensuring easy integration with existing solar PV systems and new arrays, facilitating simpler commercial installations.

• Modular and Scalable Design: The flexible architecture allows for energy expansion from 40 kWh to 9.6 MWh, supporting growing energy demands. Up to 10 inverters can be connected in parallel, with 16 batteries per inverter.

• Seamless Backup Power: With a 5ms transfer speed, this inverter provides quick backup power during grid outages, ensuring business continuity. It includes a 200A grid pass-through, making it suitable for both grid-tied and backup configurations.

Technical Specifications:

• Continuous AC Power Output: 60,000 W
• Max Operating Voltage: 1000 V
• Min Operating Voltage: 180 V
• Supported AC Voltages: 277/480 V
• Frequency: 60 Hz
• Phase Configuration: 3 Phase
• Maximum DC Input Voltage: 1000 V
• Maximum DC Input Current: 160 A
• Peak Efficiency: 97.5%
• CEC Efficiency: 96.5%
• MPPT Count: 4
• Max MPPT Voltage: 850 V
• Min MPPT Voltage: 200 V
• Enclosure Rating: IP65 / NEMA 3R
• Mounting Type: Wall-mounted

General Type: Hybrid Inverter
