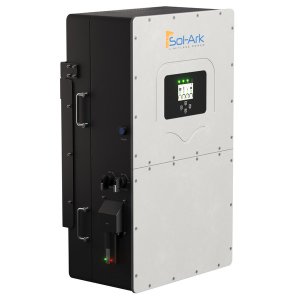

Sol-Ark 30K-3P-208V Commercial Hybrid Inverter, 30K-3P-208V

The Sol-Ark 30K-3P-208V is a robust and adaptable hybrid inverter designed for commercial applications, offering a reliable energy storage solution tailored for small to medium-sized businesses. It helps reduce operational costs by optimizing solar power usage, cutting peak demand charges, and participating in grid services to generate additional income. This unit comes with a standard 10-year warranty.

Key Features:

• AC and DC Coupling Compatibility: The inverter supports both AC and DC coupling, making it easy to integrate with existing solar PV setups or new installations for efficient energy management.

• Modular & Scalable Design: Expandable from 30 kW to 300 kW, this inverter can grow with your energy needs. You can link up to 10 inverters in parallel and add up to 16 batteries per unit.

• Reliable Backup Power: During power outages, the inverter ensures swift 5ms transfer, providing consistent backup power. It also features a 200A grid pass-through for simple grid-connected and backup configurations.

• Simple Installation for Commercial Use: Designed with a native 120/208V 3-phase output, this inverter simplifies installation, making it ideal for light commercial buildings without the need for a transformer.

• Compatible with L3 Series Lithium BESS: This hybrid inverter is the perfect match for the Sol-Ark high-voltage battery storage system and works with any high-voltage battery.

Technical Specifications:

• Continuous AC Power Output: 30,000 W
• Max Operating Voltage: 500 V
• Min Operating Voltage: 150 V
• AC Voltages Supported: 120/208 V
• Frequency: 60 Hz
• Phase Configuration: 3 Phase
• Maximum DC Input Voltage: 500 V
• Maximum DC Input Current: 200 A
• Peak Efficiency: 97.5%
• CEC Efficiency: 96.5%
• MPPT Count: 4
• Max MPPT Voltage: 500 V
• Min MPPT Voltage: 170 V
• Enclosure Rating: IP65 / NEMA 3R
• Mounting Type: Wall-mounted

General Type: Hybrid Inverter
